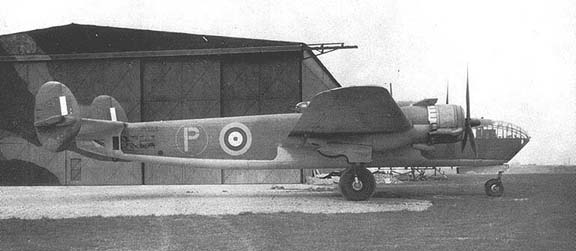

Armstrong Whitworth A.W.41 Albemarle
Type: Special Transport and glider tug.
Origin: Armstrong Whitworth
Models: Albemarle I to VI
Crew: Transport: Four
First Flight:
   Prototype: March 20, 1940
   Production Mk. I: December 1941
Final Delivery: December 1944
Number Produced: 600 (32 fitted out as bombers)
Engine:
  Model: Bristol Hercules XI
  Type: 14-Cylinder two-row sleeve valve radial
  Number: Two    Horsepower: 1,590 hp
Dimensions:
Wing span: 77 ft. (23.47m)
Length: 59 ft. 11 in. (10.56m)
Height: 15 ft. 7 in. (4.75m)
Wing Surface Area: N/A
 Weights:
Empty: 22,600 lb. (10,260 kg)
Loaded: 36,500 lb. (16,570 kg)

Performance:
Maximum Speed: 265 mph (426 km/h)
Initial Climb: 980 ft/min (299 m/min)
Service Ceiling: 18,000 ft. (5490m)
Range: 1,360 miles (2160 km)
Armament: Normally none.
Mk. I/1:
Four .303 in. Brownings in Boulton-Paul Dorsal turret.
Two .303 in. Browning in powered ventral turret.

ST.1:
Manual dorsal mount with various weapons installations.
Comments:
    The Albemarle was designed to utilize non-strategic materials and succeeded in doing so even though it increased the overall weight. The type was used all over Europe as a special transport and Glider tug though in this last role the engines tended to overheat. Except for this minor flaw the type was pleasant to fly.
BACK TO SPECIFICATIONS MENU
 BACK TO MAIN MENU
Sources:
Gunston, Bill - The Encyclodepia of the Worlds Combat aircraft, 1976, Chartwell Books, Inc., New York
