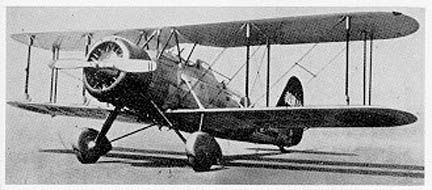

file:///C:/Warbirds%20Resource%20Group/warbirdsresourcegroup.org/IJARG/images/aichid1a-2.jpg
|
Type: Carrier based dive bomber Origin: Aichi Crew: Two Allied Code Name: Susie Models: D1A1 & D1A2 First Flight: N/A Service Delivery: N/A Final Delivery: N/A Production: D1A1: 206, D1A2: 428 Powerplant: D1A1 (Inital 162): Model: Nakajima Kotobuki 2 Kai 1 Type: Radial Number: One Horsepower: 560 hp D1A1 (Last 44): Model: Nakajima Kotobuki 3 Type: Radial Number: One Horsepower: 580 hp D1A2: Model: Nakajima Hikari 1 Type: Radial Number: One Horsepower: 730 hp |
Dimensions: Wing Span: 37 ft. 4½ in. (11.40m) Length: 30 ft. 6 in. (9.30m) Height: 11 ft. 2¼ in. (3.41m) Wing Area: 373.52 sq. ft. (34.70m²) Weights: Empty: 3,342 lb. (1516 kg.) Loaded: 5,754 lb. (2610 kg.) Performance: Max. Speed: 193 mph (310 kph) at 10,500 ft. Cruise Speed: 137 mph (220 kph) at 3,280 ft. Service Ceiling: 22,965 ft. (7000m) Climb to 9,845 ft.: 7 minutes 50 second. Range: 578 miles (930 km) Armament: Two 7.7mm Type 92 machine guns fixed forward. One 7.7mm Type 92 machine gun on flexible mount in rear position. Payload: One 550 lb. (250-kg) and two 66 lb. (30 kg.) bombs. |
Comments: Developed from the Heinkel He 66.
Sources:
The Complete Encyclopedia of World Aircraft
, 1997, Barnes & Nobles Books, ISBN: 0 7607 0592 5WARBIRDS RESOURCE GROUP > IJARC > BOMBERS > PREVIOUS PAGE
