Aichi D3A "Val"

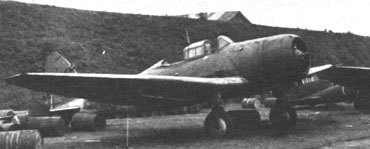

D3A Val

Type: Carrier based dive bomber
Allied Codename: Val
Crew: Two
Models: See Variant list
First Flight: N/A
Service Delivery: December 1939
Final Delivery: N/A
Production: Around 1,500 total (D3A2: 1,016)

Powerplant:
Prototype 1:
    Model: Nakajima Hikari 1
    Type: Radial piston
    Number: One     Horsepower: 750 hp

Prototype 2:
    Model: Mitsubishi Kinsei 3
    Type: Radial piston
    Number: One     Horsepower: 840 hp

D3A1 (Early):
    Model: Mitsubishi Kinsei 43
    Type: Radial piston
    Number: One     Horsepower: 1,000 hp

D3A1 (Later):
    Model: Mitsubishi Kinsei 44
    Type: Radial piston
    Number: One     Horsepower: 1,070 hp

D3A2 Model 12:
    Model: Mitsubishi Kinsei 54
    Type: Radial piston
    Number: One     Horsepower: 1,300 hp

Dimensions:
Wing Span: 47 ft. 2 in. (14.38m)
Length: 33 ft. 5.375 in. (10.2m)
Height: 12 ft. 7½ in. (3.85m)
Wing Area: 375.7 sq ft. (34.9 m²)

Weight:
Empty:
    D3A1: 5,309 lb. (2408 kg)
    D3A2: 5,666 lb. (2570 kg)
Max. Take-Off:
    D3A1: 8,047 lb. (3650 kg)
    D3A2: 8,378 lb. (3800 kg)
  Performance:
Maximum Level Speed:
    D3A1: 239 mph (385 km/h) at 9,840 ft.
    D3A2: 267 mph (430 km/h) at 20,340 ft.
Cruising Speed:
    D3A1: 183 mph (295 km/h) at 9,840 ft.

Service Ceiling:
    D3A1: 30,150 ft. (9300 m)
    D3A2: 34,450 ft. (10500 m)
Climb to 9,840 ft.: 6 Minutes 25 Seconds
Max. Range:
    D3A1: 913 miles (1470 km)
    D3A2: 840 miles (1352 km)

Armament:
Two 7.7-mm (0.303-in) Type 97 machine guns in wings.
One 7.7-mm (0.303-in) Type 92 machine gun in rear cockpit.

Payload:
One 551 lb. (250 kg) and two 132 lb (60 kg) bombs

Variant List:
D3A: Designed to meet a 1936 Carrier Dive Bomber requirement, it first flew in January 1938 with a 710 hp Nakajima Hikari 1 Radial.  Production unknown.

D3A1: First production version differed by having a larger powerplant and slightly smaller wings than the D3A.
Production: 476

D3A2: In 1942 the D3A2 was introduced, having a more powerful powerplant, and increased fuel capacity.
Production: 1016
D3A2-K: In 1943 surviving D3A2s were converted to flight trainers, which were leter converted into Kamikaze aircraft in late 1944.

Comments: This aircraft sank more allied ships and more shear tonnage than any other Axis aircraft in WWII.

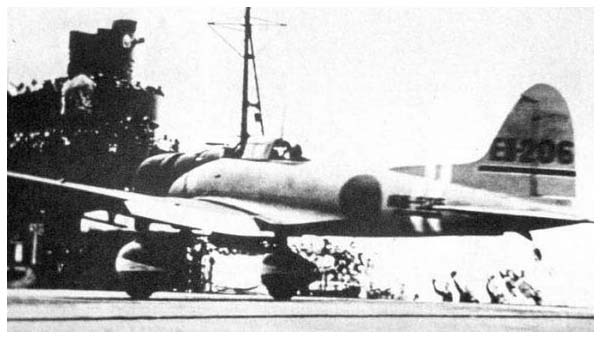

D3A Val

Sources:
The Complete Encyclopedia of World Aircraft, 1997, Barnes & Nobles Books, ISBN: 0 7607 0592 5
