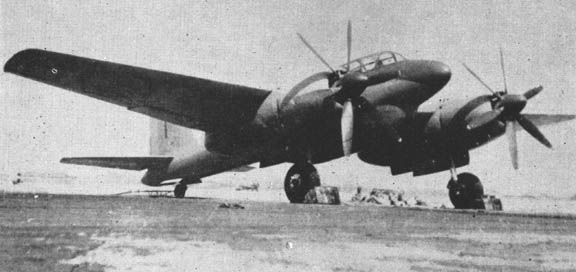

Type: Heavy Interceptor and Ground Attack Fighter Origin: Rikugun Kokugijutsu Kenkyujo (Army Aerotechnical Research Institure) Allied Code Name: N/A Crew: Two First Flight: April 1945 Number Produced: 2 Prototypes Powerplant: Model: Mitsubishi Ha. 214 Type: 18-Cylinder radial air cooled. Number: One Horsepower: 1,970 hp Propeller: Six-Bladed constant speed airscrew. Dimensions: Wing span: 62 ft. 4 in. Length: 46 ft. 7-5/8 in. Height: N/A Wing Surface Area: 589.323 Sq. Ft. Weights: Empty: 16,945 lbs. Loaded: 23,514 lbs. |
Performance: Maximum Speed at 27,230 ft.: 388 mph Economical Cruise Speed: 217 mph Time to 9,840 ft.: 4 min. 18 sec. Time to 19,685 ft.: 9 min. 3 sec. Service Ceiling: 39,535 ft. Range (External Fuel): 1,865 miles Maximum Endurance: 6 Hours Armament: One 57mm Ho-401 cannon. Two 20mm Ho-5 cannon. One 12.7mm Ho-103 machine gun on flexible mount. Bomb Load: Two 550 lb. bombs. |
Sources:
Green, William - War Planes Of The Second World War - Fighters - Vol. 3, 1964, Doubleday And Company, Inc., New York
