ARADO Ar 67
Arado Ar 67
Arado Ar 67

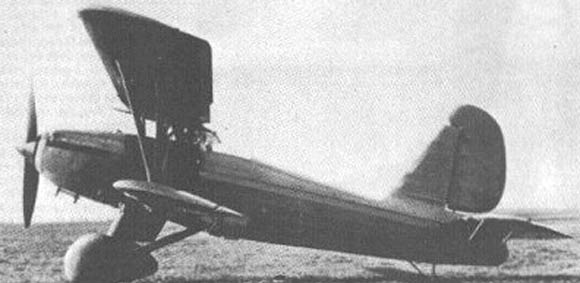

The Arado Ar 67 was the single-seat biplane fighter successor to the Ar 65.

The Ar 67 appeared in 1933 and was developed alongside the Ar 68. The Ar 67 was considerably smaller and lighter than the Ar 65. But the Ar 68 proved to be a better performer, and all further work on the Ar 67 was discontinued after only one prototype was built.

SPECIFICATIONS:
Type: Single-seat fighter prototype
Origin: Arado Handelsgesellschaft, Warnedmunde
Models: Ar 67a
First Flight: Fall 1933
Service Delivery: N/A
Final Delivery: N/A

Powerplant:
  • Model: Rolls-Royce Kestrel VI
  • Type: 12-Cylinder Water Cooled Vee
  • Horsepower: 525 hp

Dimensions:
  • Wing span: 9.68m (31 ft. 9 in.)
  • Length: 7.87m (25 ft. 11 in.)
  • Height: 3.10m (10 ft. 2 in.)
  • Wing Surface Area: N/A

Weights:
  • Empty (No Guns): 1,270kg (2,799 lbs.)
  • Maximum: 1,660kg (3,660 lbs.)

Performance:
  • Maximum Speed: 340kph (211 mph)
  • Initial climb: N/A
  • Range: N/A
  • Service Ceiling: 30,510 ft. (9,300m)

Armament: (Proposed, none fitted)
  • 2 × 7.92 mm MG 17 machine guns with 500 rounds per gun

Arado Ar 67

Sources:
Gunston, Bill & Wood, Tony - Hitler's Luftwaffe, 1977, Salamander Books Ltd., London
Green, William - Warplanes of the Third Reich. 1970, New York: Doubleday & Company Inc.
Wikipedia - Arado Ar 67
