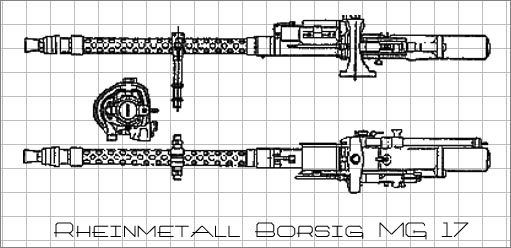

Rhienmetall Borsig MG 17
A mainstay fixed machine gun in German built aircraft (many of which were sold to other countries) well before World War II, by 1940 it was starting to be replaced with heavier caliber machine gun and cannons. By 1945 very few if any aircraft mounted the MG 17.

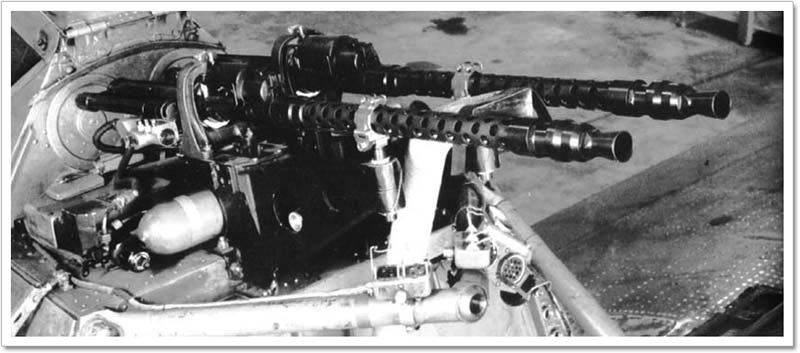

Two MG 17's mounted in the nose of a Fw 190A6
Two MG 17's mounted in the nose of a Fw 190A6

The MG 17 was installed in the Messerschmitt Bf 109, Messerschmitt Bf 110, Focke-Wulf Fw 190, Junkers Ju 87, Junkers Ju 88C Nightfighter, Heinkel He 111, Dornier Do 17/215 Nightfighter, Focke-Wulf Fw 189 and many other aircraft. Many MG 17s were later modified for infantry use, as the Luftwaffe replaced them with the heavier-calibre MG 131, which replaced both the MG 15 in bomber defense applications and the MG 17 as the standard fighter's forward-firing offensive armament (unless the machine guns were replaced by autocannons, such as the MG 151/20, altogether). Official numbers of conversions was about 24,271 by January 1, 1944, although additional conversions may have been done as well.

Modifications to the design included removal of the buttstock, switching from magazine to belt-fed ammunition, and from open-bolt operation to closed bolt operation, to allow it to be installed in synchronized applications, firing through the propeller arc. The MG 15 retained open bolt operation, but used 75 round saddle-type drum magazines, and likewise lost its buttstock, to fit better in the tight confines of an aircraft. The MG 30 was also the basis for the famed MG 34 and MG 42 designs; variants of the latter are still in service in certain areas.

Manufacturer: Rhienmetall-Borsig
Number built: 24,271
Year of Design: 1934
Produced: 1934-1944

Caliber: 7.92mm
Cartidge: 7.92x57mm Mauser
Action: Recoil operated, firing from closed bolt
Feed Type: Belt
Weight: 22 lb. (10.2kg)
Length: 46.3 in (1,175mm)
Barrel Length: N/A
Muzzle Velocity:
- Phosphor "B" Round: 2,810fps (855mps)
- AP Tracer: 2,970fps (905mps)
Effective Range: N/A
Rate Of Fire: 1,200 rpm
Rhienmetall Borsig MG 17
Rhienmetall Borsig MG 17 has an informative video of the MG 17 and how it works.
