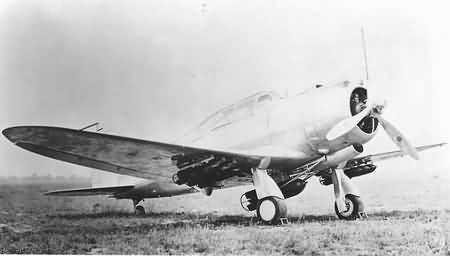

SEVERSKY AT-12 GUARDSMAN


Type: Advanced Trainer
Origin: Seversky
Crew/Seats: Two
Model: Seversky 2PA Guardsman
First Flight: N/A
Production: 74
  20 to Japan, 2 to Sweden, 2 to USSR, 50 to USAAC

Powerplant:
2PA Guardsman:
  Model: Wright R-1820 Cyclone
  Type: Radial piston engine
  Number: One      Horsepower: 1,000 hp

AT-12:
  Model: Pratt & Whitney R-1830-45
  Type: Radial piston engine
  Number: One      Horsepower: 1,050 hp

Dimensions:
Wing span: 41 ft. (12.5m)
Length: 27 ft. 8 in. (8.4m)
Height: N/A
Wing Surface Area: N/A
  Weights:
Empty: N/A
Loaded: 8,360 lb (3,781 kg)

Performance:
Maximum Speed: 285 mph (458 kph)
Cruising Speed: N/A
Initial Climb: N/A
Service Ceiling: N/A
Range: N/A

Armament:N/A

Comments: Developed by Seversky as a two-seat export version of the P-35. Small numbers were supplied to Japan and USSR, the largest order was for Sweden which had ordered 52. At the outbreak of hostilities only two of the Swedish aircraft had been delivered and the remaining 50 aircraft were impressed into service with the USAAC. Re-engined, they served in the role of advanced trainers as the AT-12.

Sources:
The Complete Encyclodepia of World Aircraft, 1997, Barnes & Nobles Books, ISBN: 0 7607 0592 5
