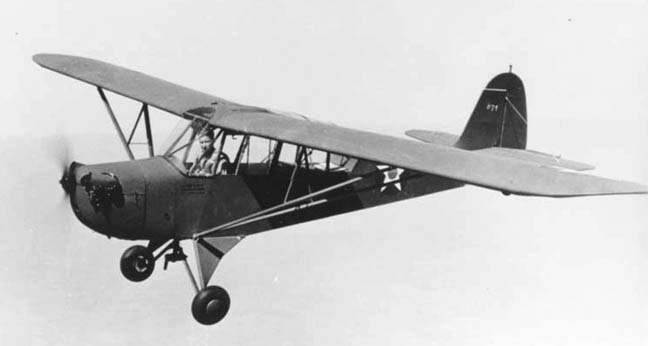

AERONCA L-3 GRASSHOPPER


The L-3 was initially designated the O-58 at the time it was first ordered by the Air Corps, a designation prefix that was retired in April 1942.

When American forces went into combat after Pearl Harbor, the Army Air Force used the L-3 in much the same manner as observation balloons were used during World War I — spotting activities and directing artillery fire. It was also used for liaison and transport duties and short-range reconnaissance which required airplanes to land and take off in short distances from unprepared landing strips. Liaison pilots would train on L-3s before moving on to front-line aircraft like the Piper L-4 or the Stinson L-5. Some L-3s were shipped to north Africa, and subsequently given to the Free French Forces in the area at the time. At least one of the aircraft served with US forces in Italy.

Type: Liason & Observation aircraft
Origin: Aeronca
Crew: Two
First Flight: N/A
Final Delivery: N/A
Aircraft Produced: 1,435

Powerplant:
   Model: Continental O-170
   Type: Flat-Four piston engine
   Number: One       Horsepower: 65 hp

Dimensions:
   Wing span: 35 ft. 0 in. (10.67m)
   Length: 21 ft. 0 in. (6.40m)
   Height: 7 ft. 8 in. (2.34m)
   Wing Surface Area: 158 sq. ft. (14.68m²)
  Weights:
   Empty: 835 lb. (379 kg)
   Loaded: 1,300 lb. (590 kg)

Performance:
   Maximum Speed: 87 mph (140 kph)
   Cruising Speed: 46 mph (74 kph)
   Initial Climb: N/A
   Service Ceiling: 10,000 ft. (3050m)
   Range: 200 miles (322 km)

Armament: N/A

Payload: N/A

Avionics: N/A
