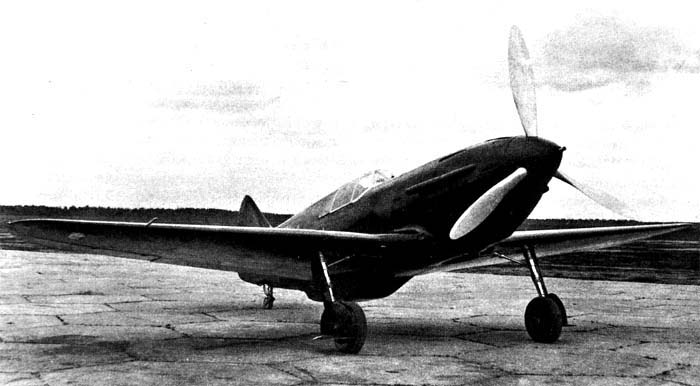

Type: Single seat fighter Origin: Lavochkin-Gorbunov-Goudkov Model: LaGG-1 Crew: One First Flight: N/A Service Delivery: N/A Final Delivery: N/A Number Produced: N/A Powerplant: Model: Klimov M-105P Type: liquid-cooled V-12 Number: One Horsepower: 1,100 Dimensions: Length: 8.81 m (28 ft 11 in) Wingspan: 9.80 m (32 ft 2 in) Height: 4.40 m (14 ft 5 in) Wing area: N/A |
Weights: Empty weight: 2,478 kg (5,463 lb) Loaded weight: 2,968 kg (6,543 lb) Max takeoff weight: 3,380 kg (7,452 lb) Performance: Maximum speed: 605 km/h (377 mph) Range: 556 km (346 mi) Service ceiling: 9,600 m (31,500 ft) Rate of climb: 14.3 m/s (2,804 ft/min) Wing loading: 170 kg/m² (35 lb/ft²) Power/mass: 270 W/kg (0.17 hp/lb) Armament: Two 7.62 mm ShKAS machine guns One 20 mm ShVAK cannon |
