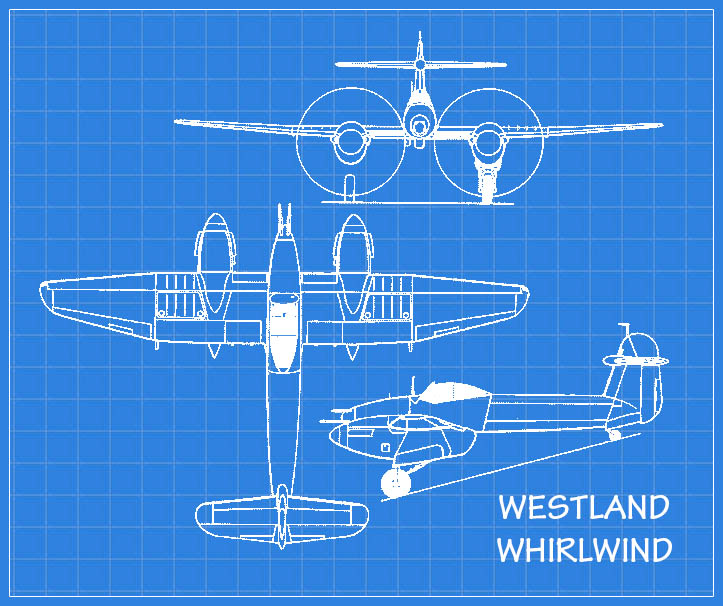

WESTLAND WHIRLWIND
Specifications

Type:
  Single Seat Day Fighter
  Fighter-Bomber
Origin: Westland
Models: Whirlwind Mk. I and IA
First Flight October 11, 1938
Service Delivery: June 1940
Final Delivery: December 1941
Number Produced: 112

Engine:
  Model: Rolls-Royce Peregrine I
  Type: 12-Cylinder liquid cooled Vee
  Number: Two    Horsepower: 885 hp

Dimensions:
Fuselage:
Length:
  Tail Down: 32 ft. 9 in. (9.98m)
  Tail Up: 32 ft. 3 in.
Height: 11 ft. 7 in. (3.52m)

Main Plane:
Span: 45 ft. (13.72m)
Surface Area: 250 Sq. Ft.
Center section:
  Max chord: 6 ft. 10 in.
  Dihedral: 0° :t 15'
  Incidence:
Outer plane:
  Max chord: 6 ft. 4 in.
  Dihedral: 2° . 13' :t 15'
  Incidence:
Thickness chord ratio at root: 17%
Thickness chord ratio at tip: 8%.
Aileron area: 37 sq. ft.
Flaps:
 : Type: Fowler
 : Area: 42 sq. ft.
 : Travel: 46°
Tail Plane:
Span: 15 ft. 11 in.
Chord: 4 ft. 6 in.
Incidence: -1°
Tailplane area: 37.5 sq. ft.
Fin area: 15 sq. ft.
Elevator area: 36 sq. ft.
Rudder area: 11.6 sq. ft.
  Sub-systems:
Hydraulic System:
  Type: Dowty
  Max. Operating Pressure: 800 psi
  Emergency air pressure: 1,200 psi

Fuel System:
  Fuel Type: 100 octane
  Tanks: Four
  Capacity: 134 Imperial gallons

Weights:
Empty:
   Whirlwind I: 7,840 lb. (3699 kg)
   Whirlwind IA: 8,310 lb. (3770 kg)
Loaded:
   Whirlwind I: 10,270 lb. (4658 kg)
   Whirlwind IA: 11,388 lb. (5166 kg)

Performance:
Maximum Speed:
    Clean: 360 mph (580 km/h)
    With Bombs: 270 mph (435 km/h)
Initial Climb (Clean): 3,000 ft/min (915 m/min)
Service Ceiling (Clean): 30,000 ft. (9144m)
Range: N/A (but thought to be roughly 800 miles)

Armament:
Four 20mm Hispano Cannons in nose.

Payload: IA only
Underwing racks for up to 1,000 lb. (454 kg) of bombs.

Sources:
Gunston, Bill - The Encyclodepia of the Worlds Combat aircraft, 1976, Chartwell Books, Inc., New York
Green, William - War Planes Of The Second World War - Fighters - Vol. 2, 1961, Hanover House, New York
