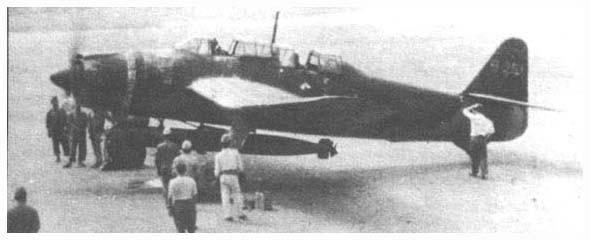

Aichi B7A Ryusei
"Shooting Star"


Type: Carrier based torpedo/dive bomber
Origin: Aichi
Crew: N/A
Allied Code Name: Grace
Models: B7A2 & B7A3
First Flight: Mid 1942
Service Delivery: N/A
Final Delivery: May 1945
Production: 114

Powerplant:
B7A2 Production:
    Model: Nakajima Homare 12
    Type: Radial
    Number: One      Horsepower: 1,825 hp

B7A2 Experimental:
    Model: Nakajima Homare 23
    Type: Radial
    Number: One      Horsepower: 2,000 hp

B7A3 (Proposed):
    Model: Mitsubishi MK9A
    Type: Radial
    Number: One      Horsepower: 2,200 hp

  Dimensions:
Wing Span: 47 ft. 3 in. (14.40m)
Length: 37 ft. 8¼ in. (11.45m)
Height: 13 ft. 4½ in. (3.70m)
Wing Area: 381.05 sq. ft. (35.40m²)

Weights:
Empty: 8,400 lb. (3810 kg.)
Loaded: 12,401 lb. (5625 kg.)

Performance:
Max. Speed: 351 mph (565 kph) at 21,490 ft.
Service Ceiling: 36,910 ft. (11,250m)
Climb to 13,125 ft.: 6 minutes 55 second.
Range: 1,889 miles (3040 km)

Armament: Late model B7A2
Two 20mm Type 99 Model 2 cannon mounted in wings.
One 13mm Type 2 machine gun on flexible mount in aft position.

Payload:
One 1,764 lb (800 kg) torpedo or similar weight in bombs.


Sources:
The Complete Encyclopedia of World Aircraft, 1997, Barnes & Nobles Books, ISBN: 0 7607 0592 5
