"Gale"

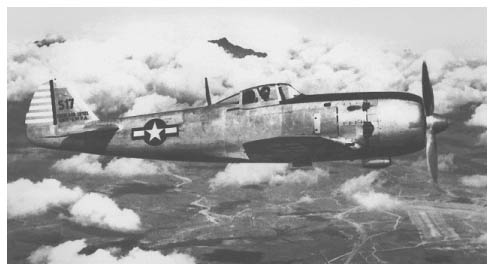

Captured "Frank" in flight.
|
Type: Single-seat interceptor and fighter-bomber Origin: Nakajima Allied Code Name: Frank First Flight: N/A Service Delivery: Summer 1944 Final Delivery: N/A Number Produced: 3,514 Engine: Ki-84 Ia: Model: Nakajima Ha-45 Type: Radial piston engine Number: One Horsepower: 1,900 hp Dimensions: Wing span: 36 ft. 10½ in.(11.24m) Length: 32 ft. 6½ in. (9.92m) Height: 11 ft. 1½ in. (3.39m) Wing Surface Area: 226.05 sq. ft. (21m²) Weights: Empty: 5,864 lbs. (2660 kg) Max. Take-Off: 8,576 lbs. (3890 kg) |
Performance: Maximum Speed: 392 mph (631 km/h) at 20,080 ft. Initial climb: N/A Service Ceiling: 34,350 ft. (10,500m) Range: 1,347 Miles (2168 km) Endurance: N/A Armament: Ki-84-Ia: Two 12.7mm machine guns. Two 20mm Cannon. Ki-84-Ib: Four 20mm Cannon. Ki-84-Ic: Two 30mm Cannon. Two 20mm Cannon. Bomb Load: Ki-84-Ia: Wing racks for two 551 lb (250 kg) bombs |
Sources:
The Complete Encyclopedia of World Aircraft
, 1997, Barnes & Nobles Books, ISBN: 0 7607 0592 5WARBIRDS RESOURCE GROUP > IJARC > FIGHTERS > PREVIOUS PAGE
