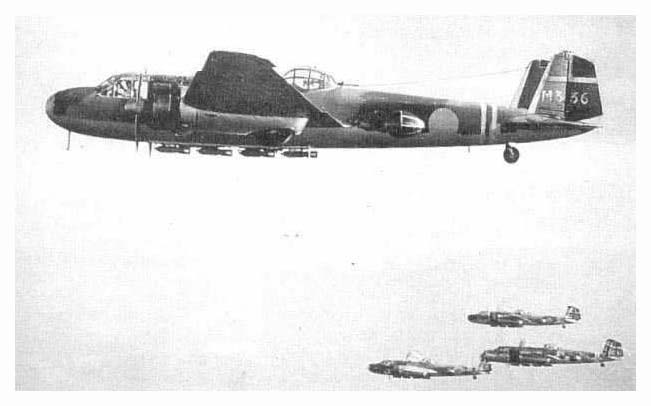

Mitsubishi G3M/L3Y


Type: Long Range Bomber/Transport
Origin: Mitsubishi
Crew: Seven
Allied Code Name: Nell (L3Y, Tina)
Models:
    Bomber Variants: Ka-15, G3M1, G3M2, G3M2
    Transport Variants: L3Y1, L3Y2
First Flight: July 1935
Combat Debut: August 14, 1937
Final Delivery: N/A
Production: 1,048
    Mitsubishi: 636
    Nakajima: 412

Powerplant:
Ka-15:
    Model: Hiro Type 91
    Type: Radial piston engine
    Number: Two       Horsepower: 750 hp

G3M1 Model 11:
    Model: Mitsubishi Kinsei 3
    Type: Radial piston engine
    Number: Two       Horsepower: 910 hp

G3M2 Model 21:
    Model: Mitsubishi 41 or 42
    Type: Radial piston engine
    Number: Two       Horsepower: 1,075 hp

G3M3 Model 23:
    Model: Mitsubishi Zuisei 51
    Type: Radial piston engine
    Number: Two       Horsepower: 1,300 hp
  Dimensions:
Wing Span: 82 ft. 0¼ in. (25m)
Length: 53 ft. 11¾ in. (16.45m)
Height: 12 ft. 1¼ in. (3.69m)
Wing Area: 907.32 sq. ft. (84.30m²)

Weights:
Empty: 11,552 lb (5240 kg)
Max. Take-Off: 17,637 lb (8000 kg)

Performance:
Max. Speed: 258 mph (415 kph) at 19,360 ft.
Initial Climb: N/A
Service Ceiling: 33,725 ft. (10280m)
Max. Range: 3,871 miles (6230 km)

Armament:
One 20mm Cannon
Four 7.7mm Machine Guns

Bomb Load:
One 1,764 lb. Torpedo or equivelant weight in bombs carried underneath fuselage.

Variants:
Ka-15: Initial prototype. 21 built.
G3M1: Initial production aircraft. 34 built.
G3M2 Model 21: Uprated engines and fuel capacity.
G3M2 Model 22: Upgraded armament.
G3M3 Model 23: Uprated engines.
L3Y1 Model 11: Transport version of G3M1.
L3Y2 Model 12: Transport version of G3M2 Model 21.

Comments:
  The G3M made its debut on August 14, 1937 with an attack on Taipai, Taiwan, travelling 1,249 miles to reach thier target. Probably the most notable action was the G3M's involvement in the attack which resulted in the sinking of the battleship HMS Prince of Wales and the battle-cruiser HMS Repulse on December 10, 1941. By 1943 the type had been relegated to secondary roles.


Sources:
The Complete Encyclopedia of World Aircraft, 1997, Barnes & Nobles Books, ISBN: 0 7607 0592 5
