Nakajima J5N1 Tenrai
"Heavenly Thunder"

J5N1
Type: Heavy Interceptor
Origin: Nakajima Hikoki K. K.
Allied Code Name: N/A
Crew: One
First Flight: March 1944
Service Delivery: None
Number Produced: 5 Prototypes

Powerplant:
Model: Nakajima NK9H Homare 21
Type: 18-Cylinder radial air cooled.
Number: Two       Horsepower: 1,990 hp

Dimensions:
Wing span: 47 ft. 6.75 in.
Length: 37 ft. 8.75 in.
Height: 11 ft. 5.75 in.
Wing Surface Area: 344.445 Sq. Ft.

Weights:
Empty: 11,453 lbs.
Loaded: 15,873 lbs.
Maximum: 18,078 lbs.
  Performance:
Maximum Speed at 20,000 ft.: 386 mph
Maximum Cruising Speed: 288 mph
Cruising Speed at 9,840 ft.: 230 mph
Time to 19,685 ft.: 8 min.
Time to 26,250 ft.: 11 min.
Service Ceiling: 35,430 ft.
Range (30 min reserve): 575 miles
Maximum Range: 920 miles

Armament:
Two 30mm Type 5 cannon
Two 20mm Type 99 Model 2 cannon

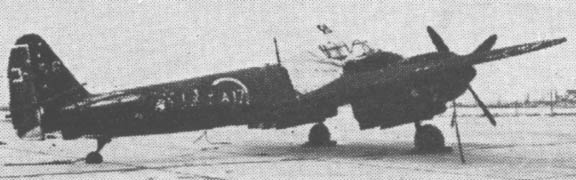

J5N1

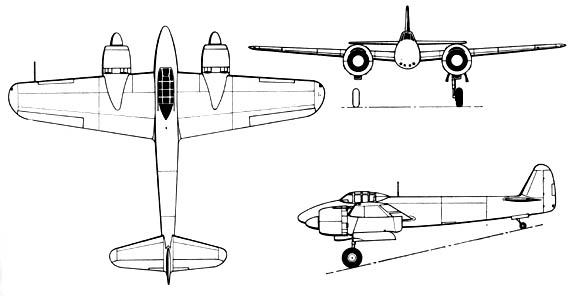

J5N1

Sources:
Green, William - War Planes Of The Second World War - Fighters - Vol. 3, 1964, Doubleday And Company, Inc., New York
