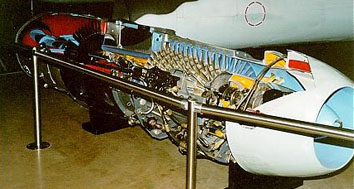

A Junkers Jumo 004 jet engine at the Wright Patterson Air Force Base Museum
RLM Designation:
Type:
Layout:
Thrust:
Weight:
Speed:
109-004B Turbojet 8ax 6in 1tu 900 kg (1984 lbs.) 745 kg (1588 lbs.) 8700 rpm
109-004C Turbojet 8ax 6in 1tu 1015 kg (2238 lbs.) 720 kg (1588 lbs.) 8700 rpm
109-004D Turbojet 8ax 6in 1tu 1050 kg (2315 lbs.) 745 kg (1588 lbs.) 10000 rpm
109-004H Turbojet 11ax 8in 2tu 1800 kg (3970 lbs.) 1200 kg (2646 lbs.) 6600 rpm
109-012 Turbojet 11ax 6in 2tu 2780 kg (6130 lbs.) 2000 kg (4410 lbs.) 5300 rpm
109-022 Turboprop 11ax 8in 2tu 4600 ehp 2600 kg (5733 lbs.) 5000 rpm
For Layout: ax=axial flow compressor stages, in=individual combustion chambers, tu=turbine stages.
Above data acquired from Me 262: Stormbird Rising, By Hugh Morgan.
Additional Images::

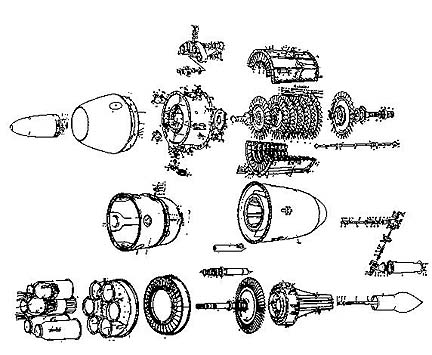

Image 1 - An exploded illustration of a Jumo 004 Turbo Jet

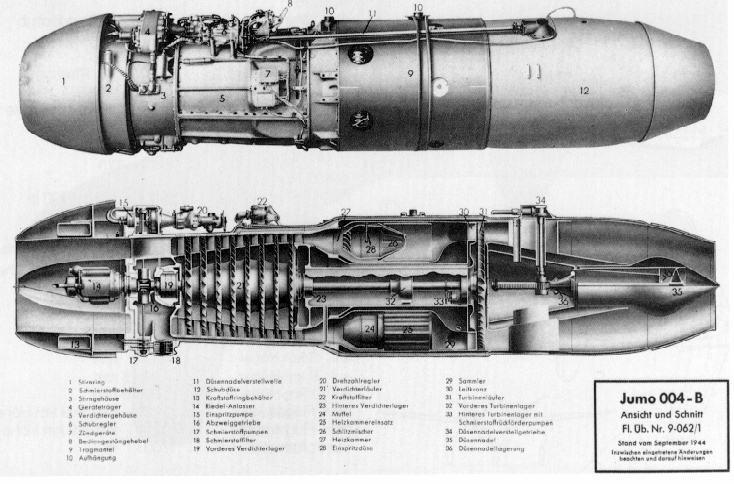

Image 2 - An cutaway illustration of a Jumo 004 Turbo Jet

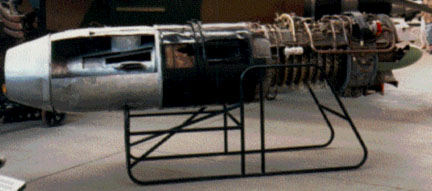

   Image 3 - A bare engine on a stand.

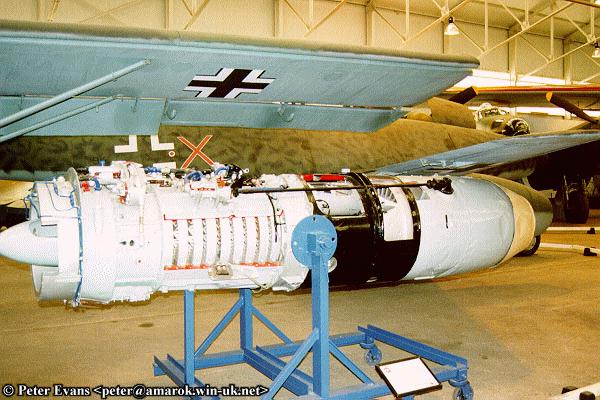

Image 4 - Another bare engine on a stand.
