• Ar 95A-1

Dimensions:
Wing span: 12.50m (41 ft.)
Length: 11.10m (35 ft. 5 in.)
Height (Seaplane): 5.20m (17 ft. ¾ in.)
Wing Surface Area: N/A

Weights:
Empty (Seaplane): 2535kg (5,588 lbs.)
Maximum: 3558kg (7,843 lbs.)

Performance:
Max. Speed (Seaplane): 300kph (187 mph)
Initial climb: N/A
Service Ceiling: N/A
Range: 680 Miles (1094 km)

Armament: (Ar 95A-1)
One 7.92mm manually aimed MG 15 mounted in rear cockpit
One synchronized 7.92mm MG 17 in fuselage

Bomb load:
1,540 lb (700kg) torpedo or various loads of bombs/mines/depth charges

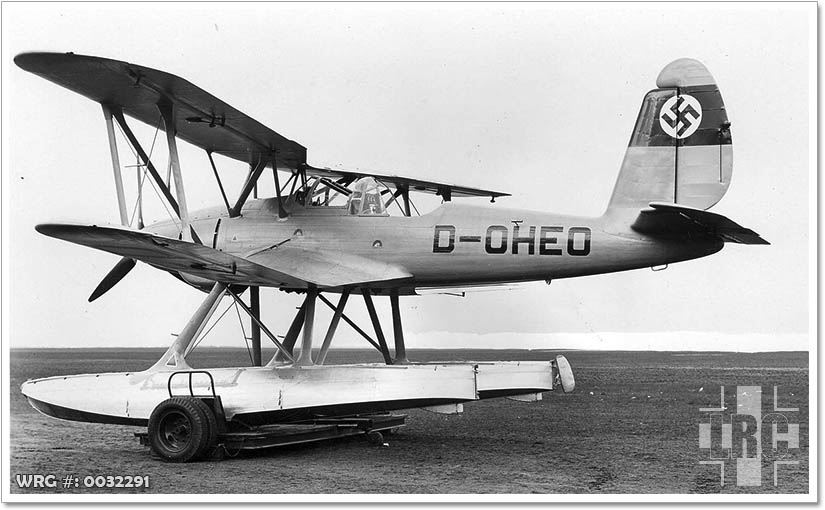

The first prototype of the Arado Ar 95, designation D-OHEO fitted with a Junkers Jumo 210 engine.
[Source: Unknown]

Sources:
Gunston, Bill & Wood, Tony - Hitler's Luftwaffe, 1977, Salamander Books Ltd., London
The Complete Encyclodepia of World Aircraft, 1997, Barnes & Nobles Books, ISBN: 0 7607 0592 5
