FOCKE WULF Fw 189
Specifications - Fw 189A-1

Origin: Focke-Wulf
Designer: Kurt Tank
Type: Tactical reconnaissance and army cooperation aircraft, light bomber
Crew: Three
Number Built: 864
First Flight: July 1938
Service Delivery: August 1941
Retired: 1945
Operators:
  • Luftwaffe
  • Hungarian Air Force
  • Slovak Air Force

Powerplant:

  • Model: Argus As 410
  • Type: Air-cooled inverted V12
  • Number: Two
  • Horsepower: 459hp

Dimensions:
  • Length: 12 m (39 ft 4 in)
  • Wingspan: 18.4 m (60 ft 4 in)
  • Height: 3.7 m (12 ft 0 in)
  • Wing area: 38 m² (409 ft²)

  • Weights:
  • Empty: 2,680 kg (5,920 lb)
  • Loaded: 3,950 kg (8,708 lb)

Performance:
  • Maximum speed: 357 kph at 2,600 m (222 mph at 8,530 ft)
  • Cruising speed: N/A
  • Rate of climb: 8.3 m/s (1,640 ft/min)
  • Service ceiling: 8,400 m (27,550 ft)
  • Range: 670 km (416 mi)
  • Wing loading: 103.9 kg/m² (21.3 lb/ft²)
  • Power/mass: 86.6 W/kg (0.053 hp/lb)

Armament:
  • 2 × 7.92 mm MG 17 machine guns mounted in the wing roots, firing forward
  • 1 × 7.92 mm MG 15 machine gun in dorsal position, flexible mount, firing rearwards
  • 1 × 7.92 mm MG 15 in rear cone, flexible mount, firing rearwards
  • In later versions, MG 15 were replaced with 7.92 mm MG 81Z twin-barrel machine gun

Payload:
  • Underwing racks for 4 × 50 kg (110 lb) bombs

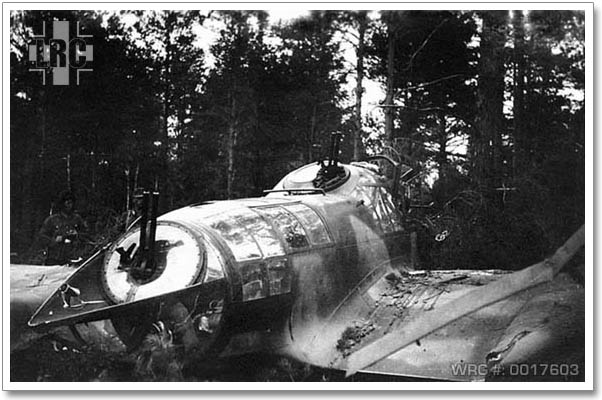

Crashed Fw 189. Note the two MG 81Z machine guns.
Crashed Fw 189. Note the two MG 81Z machine guns.

Sources:
Gunston, Bill & Wood, Tony - Hitler's Luftwaffe, 1977, Salamander Books Ltd., London
Wikipedia - Fw 189
