FOCKE WULF Fw 189
Variants

Fw 189 A-0:
10 pre-production aircraft for operational tests and trials.

Fw 189 A-1:
Initial production version, armed with two flexible 7.92 mm MG 15 machine guns in the dorsal and rear positions, one 7.92 mm (0.312 in) MG 17 machine gun in each wing root, plus four 50 kg (110 lb) bombs.
It could carry an Rb 20/30 or an Rb 50/30.

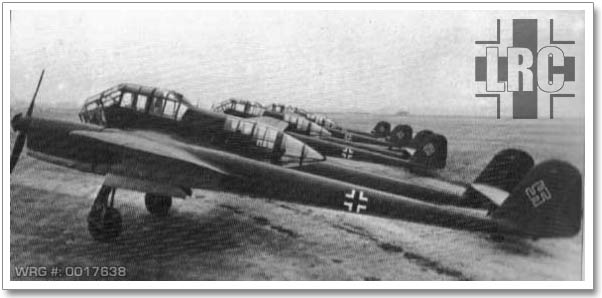

4 x Fw 189A-1S at factory awaiting delivery. WRG# 0017638
4 x Fw 189A-1S at factory awaiting delivery.

Fw 189 A-1 Trop:
Tropicalised version of the Fw 189 A-1, fitted with desert survival equipment.

Fw 189 A-1/U2:
VIP transport version of the Fw 189 A-1.

Fw 189 A-1/U3:
VIP transport version of the Fw 189 A-1.

Fw 189 A-2:
The flexible MG 15s were replaced by twin-barrel 7.92 mm (0.312 in) MG 81Z.

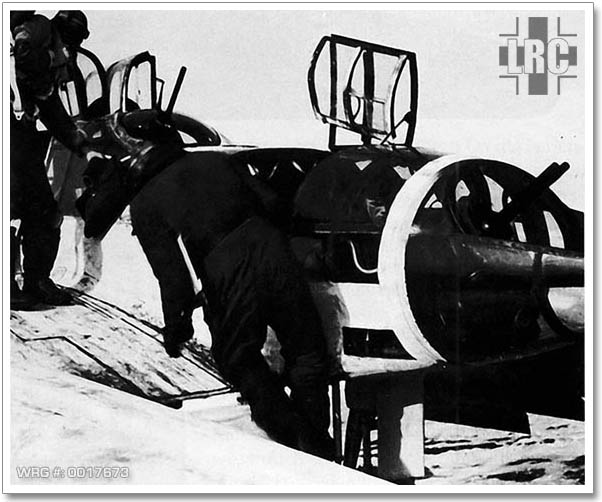

Focke Wulf Fw 189A2. WRG# 0017673
Focke Wulf Fw 189A2.

Fw 189 A-3:
Two-seat dual-control training aircraft. Built in small numbers.

Fw 189 A-4:
Light ground-attack version, armed with two 20 mm MG 151/20 cannons in each wing root, fitted with armour protection for the underside of the fuselage, engines and fuel tanks.

Fw 189 B-0:
Pre-production version of five-seat training aircraft. 3 built.

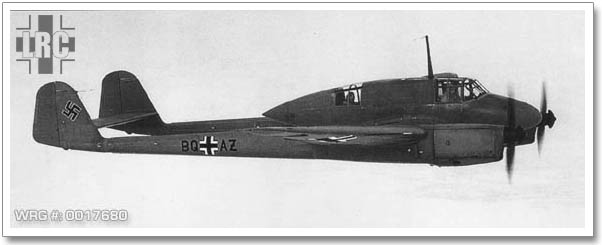

Focke Wulf Fw 189B-V5 (BQ+AZ) WNr 0010. WRG# 0017680
Focke Wulf Fw 189B-V5 (BQ+AZ) WNr 0010.

Fw 189 B-1:
Five-seat training version. 10 built.

Fw 189C V1b:
Prototype of a heavily-armoured ground-attack, close-support aircraft. One aircraft

Fw 189C V6:
Prototype of a heavily-armoured ground-attack, close-support aircraft. One aircraft

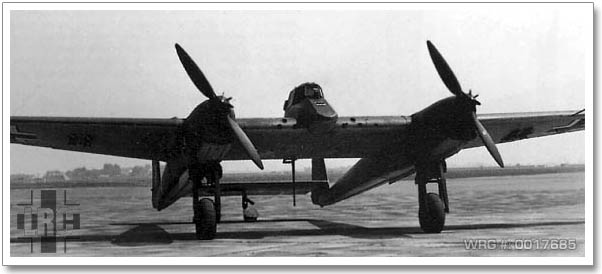

Focke Wulf Fw 189C. WRG# 0017685
Focke Wulf Fw 189B-V5 (BQ+AZ) WNr 0010.

Fw 189D:
Proposed twin-float trainer floatplane. Not built.

Fw 189E:
Prototype only, powered by two 690 hp Gnome-Rhone 14M radial engines.

Focke Wulf Fw 189E. WRG# 0017685
Focke Wulf Fw 189E.

Fw 189 F-1:
Re-engined Fw 189 A-1 aircraft, powered by two 592 hp Argus As 411 engines.

Fw 189 F-2:
Fitted with electrically-operated landing gear, increased fuel capacity and additional armour plating, powered by two 600 PS (592 hp, 441 kW) Argus As 411 engines.

Sources:
Gunston, Bill & Wood, Tony - Hitler's Luftwaffe, 1977, Salamander Books Ltd., London
Wikipedia - Fw 189
