Type: Single-seat fighter
Origin: Bayerische Flegzeugwerke

---

Powerplant:

• Model: Daimler-Benz 601E
• Type: Liquid Cooled Inverted V12
• Number: One      Horsepower: 1,300hp

---

Dimensions:

• Wing span: 32 ft. 6½ in.
• Length: 29 ft. 0½ in.
• Height: 8 ft. 6 in.
• Wing Surface Area: N/A

---

Weights:

• Empty: 4,330 lb.
• Maximum, Loaded: 6,054 lb.

---

Performance:

• Maximum Speed: 390 mph at 22,000 ft.
• Maximum Climb: 3,320 feet per minute
• Range: 440 Miles
• Service Ceiling: 37,000 ft.

---

Armament:

• One 15mm MG 151 mounted between cylinder heads and firing through the propeller hub.
• Ammunition: 200 rounds
And

• Two 7.9mm MG 17 mounted above engine.
• Ammunition: 500 rounds

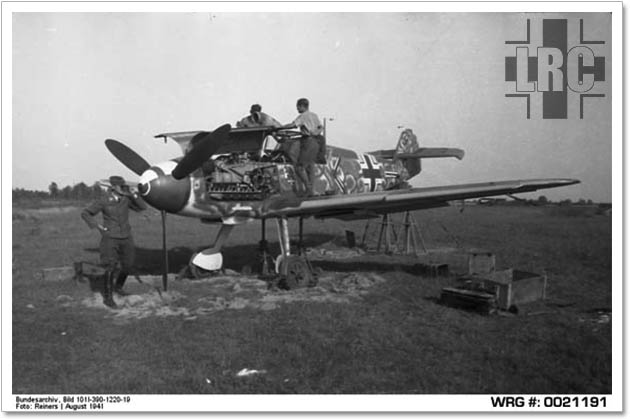

Messerschmitt Bf 109F of Stab II/JG54 undergoing maintenance. [Source: Bundesarchiv]

Sources:
Gunston, Bill - The Encyclodepia of the Worlds Combat aircraft, 1976, Chartwell Books, Inc., New York
Brown, Eric, Captain - Wings of the Luftwaffe, 1979, Airlife Publishing Ltd., Shrewsbury
Gunston, Bill & Wood, Tony - Hitler's Luftwaffe, 1977, Salamander Books Ltd., London
Donald, David - The Complete Encyclopedia Of World Aircraft, 1997, Brown Packaging Books Ltd., London
Scutts, Jerry - Messerschmitt BF109: The Operational Record, 1996, Airlife Publishing Ltd, UK
Wikipedia - BF 109
