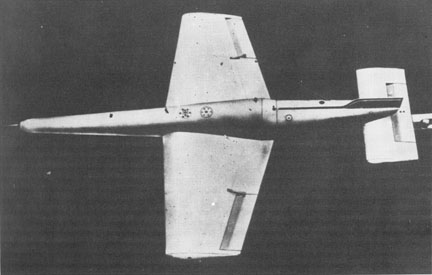

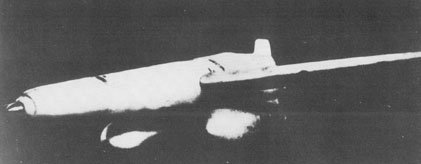

Henschel Hs 294
Manufacturer: Henschel
Type: Air launched guided glide torpedo bomb
First Launch: 1941 Dimensions:
Fuselage Diameter: 620mm
Length: 6114mm
Weight: 2170 kg.
Propulsion Unit: 2 x HWK 109-507D
Fuel Weight: N/A
Thrust (kiloponds): 1,300
Explosive Weight: 630kg
Wing Span: 4025mm
Wing Area: 5.30 Cubic Meters
Type: Air launched guided glide torpedo bomb
First Launch: 1941 Dimensions:
Fuselage Diameter: 620mm
Length: 6114mm
Weight: 2170 kg.
Propulsion Unit: 2 x HWK 109-507D
Fuel Weight: N/A
Thrust (kiloponds): 1,300
Explosive Weight: 630kg
Wing Span: 4025mm
Wing Area: 5.30 Cubic Meters
Targeting:
Hs 294D - Television guidance from launch plane. Number Produced:
20 Hs 294 V1
40 to 80 Hs 294 A-0
45 Hs 294 V2
20 Hs 294 D
Hs 294D - Television guidance from launch plane. Number Produced:
20 Hs 294 V1
40 to 80 Hs 294 A-0
45 Hs 294 V2
20 Hs 294 D
All information for this entry were acquired from Army Technical manual TM 9-1985-2/Air Force Technical Order TO 39B-1A-9 GERMAN EXPLOSIVE ORDNANCE (Bombs, Fuzes, Rockets, Land Mines, Grenades & Igniters)
