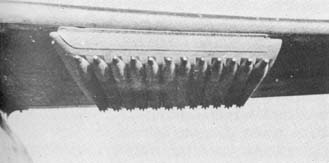

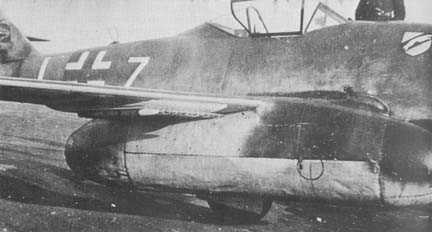

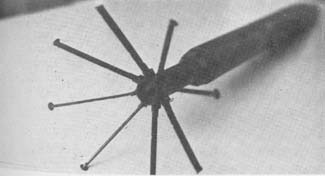

R4/M Air-To-Air/Air-To-Ground Rocket
Manufacturer: Heber Co., Osterode, Germany.
Dimensions:
Fuselage Diameter: 55mm
Length: 812mm
Weight: 3.85 kg.
Fuel Weight: .815kg
Explosive Weight: .520kg
Wing Span: 242mm
Wing Area: N/A
Performance:
Velocity: 525 meters per second
Range: 1500m
Targeting:
Roughly same ballistic qualities as the Mk 108 30mm cannon so the normal Revi gunsight could be used.
Ballistic Information Round Types:
High Explosive and Anti-tank
Round Weights: N/A
Dimensions:
Fuselage Diameter: 55mm
Length: 812mm
Weight: 3.85 kg.
Fuel Weight: .815kg
Explosive Weight: .520kg
Wing Span: 242mm
Wing Area: N/A
Performance:
Velocity: 525 meters per second
Range: 1500m
Targeting:
Roughly same ballistic qualities as the Mk 108 30mm cannon so the normal Revi gunsight could be used.
Ballistic Information Round Types:
High Explosive and Anti-tank
Round Weights: N/A
All information for this entry were acquired from Army Technical manual TM 9-1985-2/Air Force Technical Order TO 39B-1A-9 GERMAN EXPLOSIVE ORDNANCE (Bombs, Fuzes, Rockets, Land Mines, Grenades & Igniters)
