Variants
RAF Designation for PB2Y-3
XPB2Y-1
Prototype with four 1,050 hp (780 kW) Pratt & Whitney XR-1830-72 Twin Wasp engines, one built.

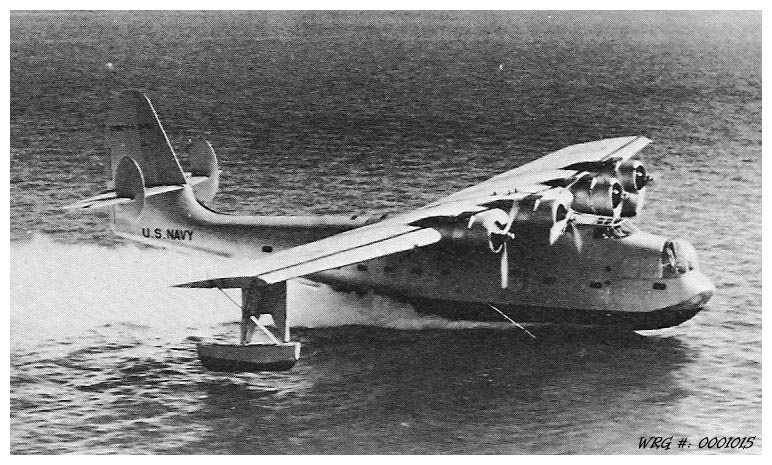

The Consolidated XPB2Y-1 Coronado (BuNo 0453) flying boat in 1938.
Note the original single tail configuration.
[Source: U.S. Navy Photo]
Evalutation variant with four 1,020 hp (760 kW) Pratt & Whitney R-1830-78 Twin Wasp engines, modified hull and six 0.5 in (13 mm) guns, six built.
XPB2Y-3
One PB2Y-2 converted as prototype for PB2Y-3.
PB2Y-3
Production variant with four 1,200 hp (890 kW) Pratt & Whitney R-1830-88 Twin Wasp engines and eight 0.5 in (13 mm) guns, 210 built.
PB2Y-3B
Lend-lease designation for Royal Air Force aircraft.
PB2Y-3R
PB2Y-3s converted by Rohr Aircraft Corp as freighters with faired-over turrets, side loading hatch, and seating for 44 passengers, 31 built.
XPB2Y-4
One PB2Y-2 re-engined with four 1,600 hp (1,200 kW) Wright R-2600 Cyclone 14 engines.
XPB2Y-5
The XP2BY-3 converted as PB2Y-5 prototype.
PB2Y-5
PB2Y-3s converted with four 1,200 hp (890 kW) Pratt & Whitney R-1830-92 Twin Wasp engines, increased fuel capacity and provision for RATOG (rocket assisted take-off gear).

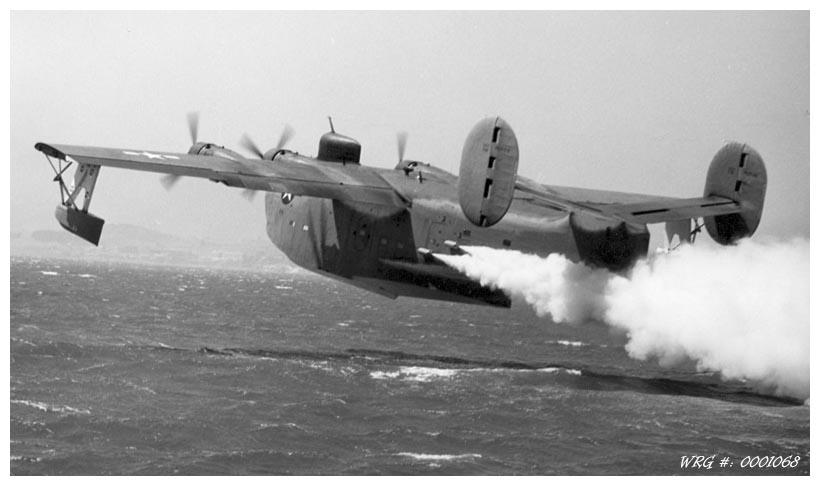

Consolidated PB2Y-5 Coronado making a RATO assisted take off.
[Source: U.S. Navy Photo]
PB2Y-5s converted as unarmed transports some fitted for medical evacuation role.
