CURTISS SB2C HELLDIVER
Variants

XSB2C-1 - Prototype powered by a 1,700 hp (1,268 kW) R-2600-8 engine

SB2C-1 - Production version for United States Navy with four 0.50 in (12.7 mm) wing guns and one 0.30 in (7.62 mm) dorsal gun, 200 built.

Curtiss SB2C HELLDIVER.

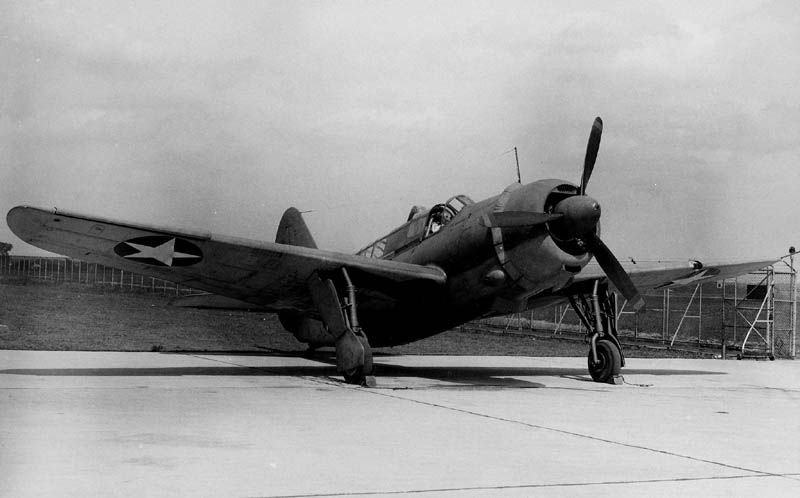

One of the first production SB2C-1 Helldivers probably pictured at the
Curtiss-Wright factory in Buffalo, New York, on September 8, 1942.

[Source: National Museum Of Naval Aviation]

SB2C-1A - Original designation for United States Army Air Corps version which became A-25A later used for 410 A-25As transferred to the United States Marine Corps.

SB2C-1C - SB2C-1 with two 20 mm (0.79 in) wing-mounted cannons and hydraulically operated flaps, 778 built.

XSB2C-2 - One SB2C-1 fitted with twin floats in 1942.

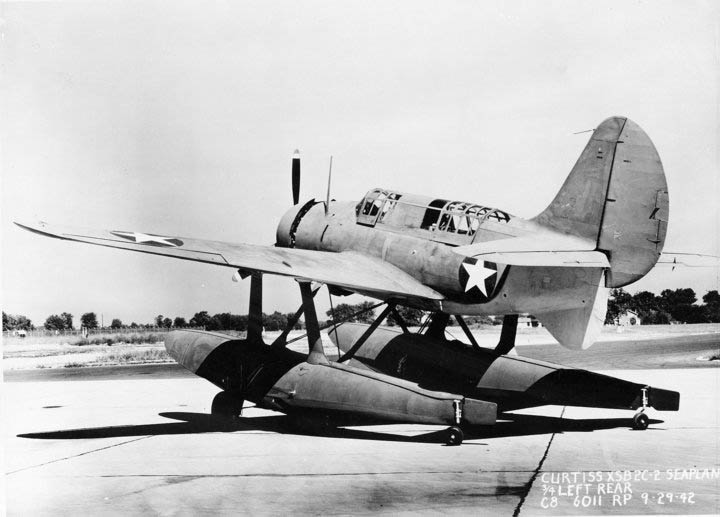

Photograph of an XSB2C-2 Helldiver configured as a seaplane taken on September 29, 1942..
Photograph of an XSB2C-2 Helldiver configured as a seaplane taken on September 29, 1942.
[Source: National Museum Of Naval Aviation]

SB2C-2 - Production float plane version, 287 cancelled and not built.

XSB2C-3 - One SB2C-1 re-engined with a 1,900 hp (1,417 kW) R-2600-20.

SB2C-3 - As SB2C-1 re-engined with a 1,900 hp (1,417 kW) R-2600-20 and four-bladed propeller, 1,112 built.

S2BC-3E - SB2C-3s fitted with APS-4 radar.

SB2C-4 - SB2C-1 but fitted with wing racks for eight 5 in (127 mm) rockets or 1,000 lb (454 kg) bombs, 2,045 built.

SB2C-4E - SB2C-4s fitted with APS-4 radar.

XSB2C-5 - Two SB2C-4s converted as prototypes for -5 variant.

SB2C-5 - SB2C-4 with increased fuel capacity, frameless sliding canopy, tailhook fixed in extended position, and deletion of the ASB radar, 970 built (2,500 cancelled).

Plane handlers maneuver an SB2C-5 Helldiver of Bombing Squadron (VB) 95 from an elevator onto the hangar deck on board the carrier Bunker Hill (CV 17) during October 1945
Plane handlers maneuver an SB2C-5 Helldiver of Bombing Squadron (VB) 95 from an elevator onto the hangar deck on board the carrier Bunker Hill (CV 17) during October 1945.
[Source: National Museum Of Naval Aviation]

XSB2C-6 - Two SB2C-1Cs fitted with 2,100 hp (1,566 kW) R-2600-22 engine and increased fuel capacity.

SBF-1 - Canadian built version of the SB2C-1, 50 built by Fairchild-Canada.

SBF-3 - Canadian built version of the SB2C-3, 150 built by Fairchild-Canada.

SBF-4E - Canadian built version of the SB2C-4E, 100 built by Fairchild-Canada.

SBW-1 - Canadian built version of the SB2C-1, 38 built by Canadian Car & Foundry company.

SBW-1B - Canadian built version for lend-lease to the Royal Navy as the Helldiver I, 28 aircraft built by Canadian Car & Foundry company.

SBW-3 - Canadian built version of the SB2C-3, 413 built by Canadian Car & Foundry company.

SBW-4E - Canadian built version of the SB2C-4E, 270 built by Canadian Car & Foundry company.

SBW-5 - Canadian-built version of the SB2C-5, 85 built (165 cancelled) by the Canadian Car & Foundry company.

A-25A Shrike - United States Army Air Corps version without arrester gear or folding wings and equipment changed, 900 built

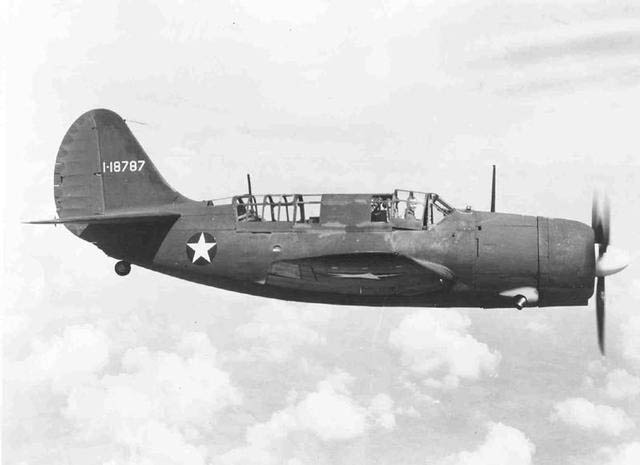

Curtiss A-25A-5-CS Shrike (Serial Number: 41-18787).
Curtiss A-25A-5-CS Shrike (Serial Number: 41-18787).
[Source: USAAF Photo]

Helldiver I - Royal Navy designation for 28 Canadian-built SBW-1Bs

[Source: Wikipedia]
