Variants
Prototype Vought Model VS.310 powered by a 450 hp (336 kW) Pratt & Whitney R-985-4 engine, one built.

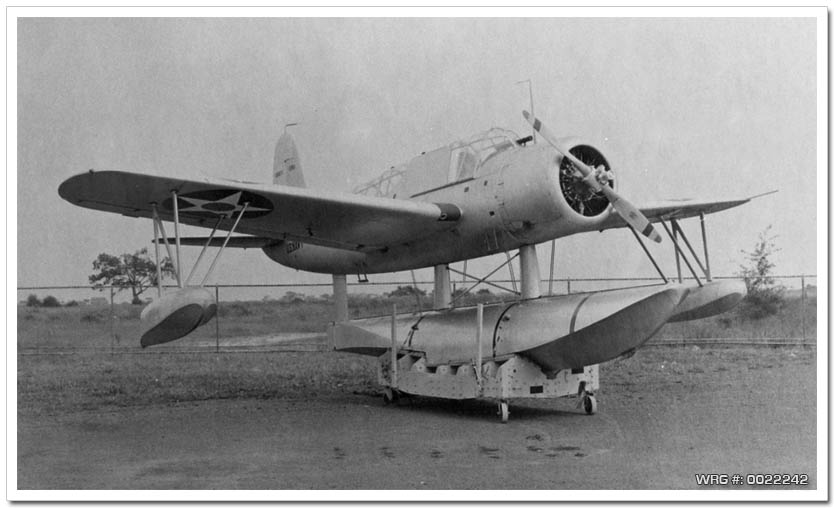

X0S2U-1 Kingfisher, July 28, 1938
[Source: U.S. Navy]
Initial production variant as the prototype but powered by a 450 hp (336 kW) Pratt & Whitney R-985-48, 54 built.
OS2U-2
Production variant with minor equipment changes and powered by a 450 hp (336 kW) Pratt & Whitney R-985-50, 158 built.
OS2U-2 Kingfisher in flight 1942
[Source: U.S. Navy]
Based on the 02SU-2 with self-sealing fuel tanks, armour protection, two .30 cal (7.62 mm) guns (dorsal and nose mounted), and able to carry 325 lb (147 kg) of depth charges or 100 lb (45 kg) bombs, powered by a 450 hp (336 kW) Pratt & Whitney R-985-AN2 engine, 1006 built.
0S2U-3 Kingfisher
[Source: U.S. Navy]
Two aircraft converted with narrow-chord and high-aspect ratio wings, also fitted with full-span flaps. Not developed.
OS2N-1
Naval Aircraft Factory built OS2U-3 with a 450 hp (336 kW) Pratt & Whitney R-985-AN-2 or -AN-8 engine, 300 built.
OS2N-1 Kingfisher at the Naval Aircraft Factory 1941.
[Source: U.S. Navy]
British designation for the OS2U-3, 100 delivered to the Royal Navy.
Source:
Wikipedia
