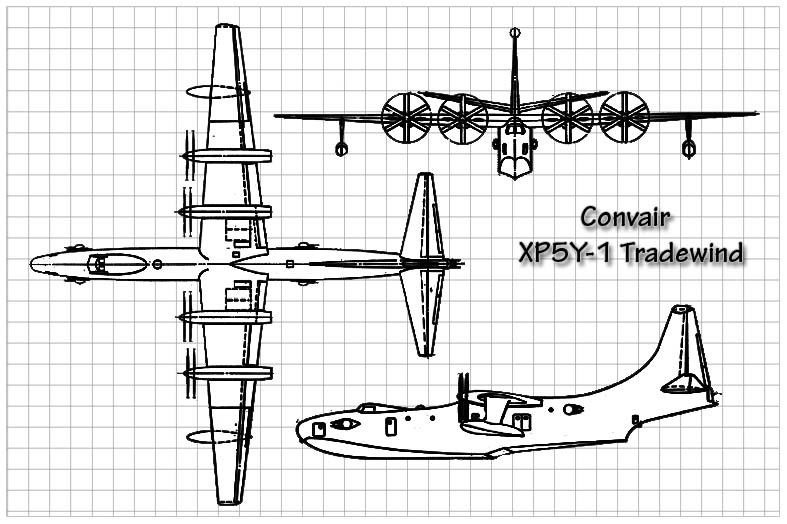

CONVAIR R3Y TRADEWIND
Specifications

Type: Transport flying boat & aerial tanker
Origin: Convair
Crew: 5
Models: R3Y, P5Y
First Flight: February 22, 1954
Service Introduction: 1956
Retired: 1958
Production: 11

Powerplant:
  Model: Allison T40-A-10
  Type: Turboprop
  Number: Four
  Horsepower: 5,100 hp

Dimensions:
Length: 139 ft 8 in (42.26 m)
Wingspan: 145 ft 9 in (44.42 m)
Height: 51 ft 5 in (15.68 m)
Wing area: 2,102 ft² (195.3 m²)

  Weights:
Empty weight: 71,824 lb (32,579 kg)
Loaded weight: 145,500 lb (66,000 kg)
Useful load: 47,951 lb (21,750 kg)
Max. takeoff weight: 165,000 lb (74,800 kg)

Performance:
Max. Speed: 403 mph (624 kph)
Service Ceiling: 39,700 ft (12,100 m)
Max. Range: 2,785 mi (4,482 km)
Wing loading: 69.22 lb/ft² (338 kg/m²)
Power/mass: 0.14 hp/lb (230 W/kg)

Armament:
N/A

Bomb Load:
N/A

Avionics:
N/A

Source:
Wikipedia
