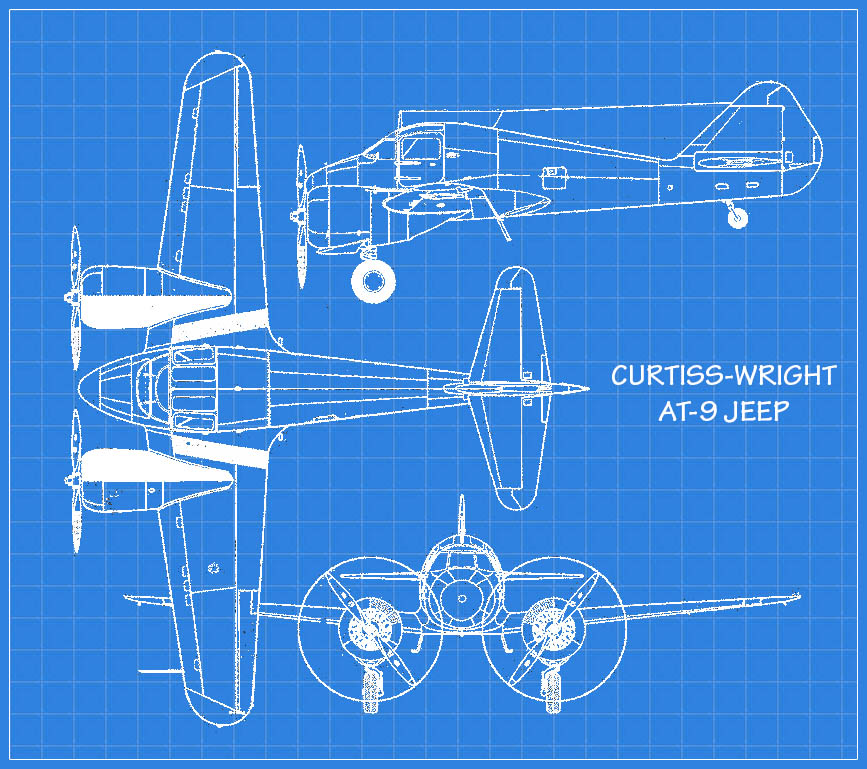

CURTISS-WRIGHT AT-9 JEEP
Specifications

Type: Advanced Trainer
Origin: Curtiss-Wright
Crew/Seats: N/A
Model: AT-9 & AT-9A
First Flight: N/A
Final Delivery: N/A
Production: AT-9: 491, AT-9A: 300

Engine:
   Model: Avco Lycoming R-680-9
   Type: Radial piston engine
   Number: Two       Horsepower: 295 hp

Dimensions:
   Wing span: 40 ft. 4 in. (12.29m)
   Length: 31 ft. 8 in. (9.65m)
   Height: 9 ft. 10 in. (3.00m)
   Wing Surface Area: 233.0 Sq. Ft. (21.65m)
  Weights:
   Empty: 4,600 lb. (2087 kg)
   Loaded: 6,000 lb. (2722 kg)

Performance:
   Maximum Speed: 197 mph (317 kph)
   Cruising Speed: 175 mph (282 kph)
   Initial Climb: N/A
   Service Ceiling: N/A
   Range: 750 miles (1207 km)

Armament: None

Payload: N/A

Avionics: N/A

Sources:
The Complete Encyclodepia of World Aircraft, 1997, Barnes & Nobles Books, ISBN: 0 7607 0592 5
