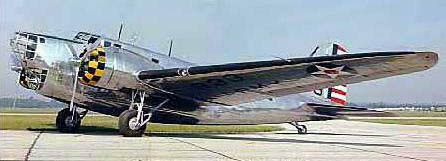

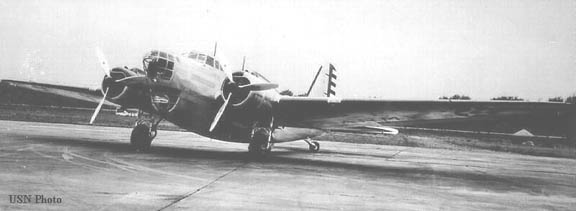

DOUGLAS B-18 BOLO


Type: Medium Bomber and ASW aircraft
Origin: Douglas
Crew/Seats: N/A
Model: See variants list
First Flight: August 1935
Service Delivery: B-18: 1936, B-18A: 1937
Production:
    B-18: 133 (including DB-1 prototype)
    B-18A: 217

Engine:
B-18:
   Model: Wright R-1820-45 Cyclone 9
   Type: Radial piston engine
   Number: Two       Horsepower: 930 hp

B-18A:
   Model: Wright R-1820-53 Cyclone 9
   Type: Radial piston engine
   Number: Two       Horsepower: 1,000 hp

Dimensions:
   Wing span: 89 ft. 6 in. (27.28m)
   Length: 57 ft. 10 in. (17.63m)
   Height: 15 ft. 2 in. (4.62m)
   Wing Surface Area: 965 Sq. Ft. (89.65m²)

Weights:
   Empty: 16,321 lb. (7,403 kg)
   Loaded: 27,673 lb. (12,552 kg)

Performance:
   Maximum Speed: 215 mph (346 kph) at 10,000 ft.
   Cruising Speed: 167 mph (269 kph)
   Initial Climb: N/A
   Service Ceiling: 23,900 ft. (7285m)
   Range: 1,400 miles (2253 km)
  Armament:
Three .30 machine guns in nose, dorsal, and ventral positions.

Payload:
6,500 lb. (2948 kg) of bombs carried internally.

Avionics: N/A

Variants:
B-18: First production version.
B-18A: Primary version with revised bombadiers position and nose gunner station. Re-engined with wright R-1820-53 engines.
B-18B: Designation of 122 B-18A equipped for ASW warfare with addition of search radar and magnetic anomoly detecters.
B-18C: Two aircraft configured similarly to B-18B.
B-18AM: 18 B-18As converted for use as trainers. Bomb equipment removed.
B-18M: 22 B-18s converted to trainers. Bomb equipment removed.
B-22: project development of B-18A with Wright R-2600-3 radials (1,600 hp).
C-58: Two aircraft converted to transport role.
Digby Mk. I: 20 B-18A's supplied to Royal Canadian Air Force and used for maritime patrol.
