In April 1938, shortly after the German Anschluss of Austria, the British government established a purchasing commission in the United States, headed by Sir Henry Self. Self was given overall responsibility for Royal Air Force (RAF) production and research and development, and also served with Sir Wilfrid Freeman, the "Air Member for Development and Production". Self also sat on the British Air Council Sub-committee on Supply (or "Supply Committee") and one of his tasks was to organize the manufacturing and supply of American fighter aircraft for the RAF. At the time, the choice was very limited, as no US aircraft already flying met European standards, with only the Curtiss P-40 Tomahawk coming close. The Curtiss-Wright plant was running at capacity, so P-40s were in short supply.

North American Aviation (NAA) was already supplying its Harvard trainer to the RAF, but was otherwise underutilized. NAA President "Dutch" Kindelberger approached Self to sell a new medium bomber, the B-25 Mitchell. Instead, Self asked if NAA could manufacture the Tomahawk under license from Curtiss.

Kindelberger said NAA could have a better aircraft with the same engine in the air sooner than establishing a production line for the P-40. The Commission stipulated armament of four .303 in (7.7 mm) machine guns, the Allison V-1710 liquid-cooled engine, a unit cost of no more than $40,000, and delivery of the first production aircraft by January 1941. In March 1940, 320 aircraft were ordered by Sir Wilfred Freeman who had become the executive head of Ministry of Aircraft Production (MAP), and the contract was promulgated on 24 April.

The design, known as the NA-73X, followed the best conventional practice of the era, but included several new features. One was a wing designed using laminar flow airfoils, known as the NAA/NACA 45-100 series, which were developed co-operatively by North American Aviation and NACA. These airfoils generated very low drag at high speeds. During the development of the NA-73X, a wind tunnel test of two wings, one using NACA 5-digit airfoils and the other using the new NAA/NACA 45-100 airfoils, was performed in the University of Washington Kirsten Wind Tunnel. The results of this test showed the superiority of the wing designed with the NAA/NACA 45-100 airfoils. The other feature was a new radiator design that exploited the "Meredith Effect", in which heated air exited the radiator as a form of jet thrust. Because NAA lacked a suitable wind tunnel to test this feature, it used the GALCIT 10 ft (3.0 m) wind tunnel at Caltech. This led to some controversy over whether the Mustang's cooling system aerodynamics were developed by NAA's engineer Edgar Schmued or by Curtiss, although NAA had purchased the complete set of P-40 and XP-46 wind tunnel data and flight test reports for US$56,000. The NA-73X was also one of the first aircraft to have a fuselage lofted mathematically using conics. This resulted in the aircraft's fuselage having smooth, low drag, surfaces.

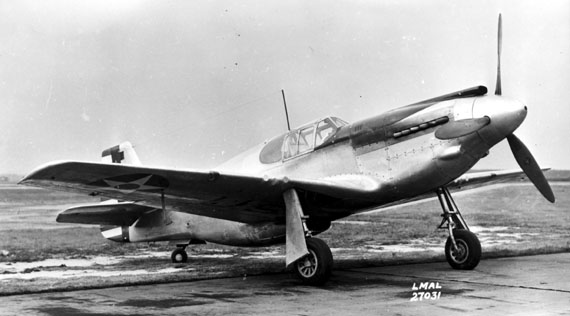

NA-73X prototype
The NA-73X prototype.
(NAA Photo)

The prototype NA-73X was rolled out in September 1940 and first flew on 26 October 1940, respectively 102 and 149 days after the order had been placed, an uncommonly short gestation period. The prototype handled well and accommodated an impressive fuel load. The aircraft’s two-section, semi-monocoque fuselage was constructed entirely of aluminum to save weight. It was armed with four .30 in (7.62 mm) M1919 Browning machine guns, two in the wings and two mounted under the engine and firing through the propeller arc using gun synchronizing gear.

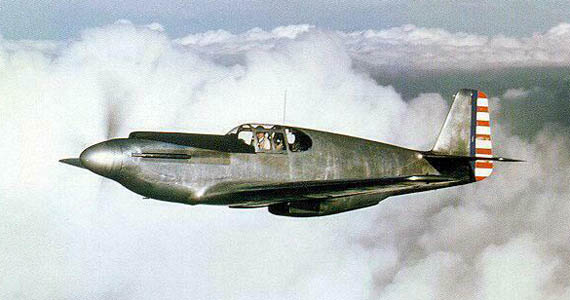

XP-51 Mustang 41-039
The second XP-51 prototype, 41-039.
(USAF Photo)

While the United States Army Air Corps (USAAC) could block any sales it considered detrimental to the interests of the US, the NA-73 was considered to be a special case because it had been designed at the instigation of the British. In September 1940 a further 300 NA-73s were ordered by MAP. To ensure uninterrupted delivery Colonel Oliver P. Echols arranged with the Anglo-French Purchasing Commission to deliver the aircraft, and NAA gave two examples to the USAAC for evaluation.

Sources:
Wikipedia
Gunston, Bill - The Encyclodepia of the Worlds Combat aircraft, 1976, Chartwell Books, Inc., New York
The Complete Encyclodepia of World Aircraft, 1997, Barnes & Nobles Books, ISBN: 0 7607 0592 5
