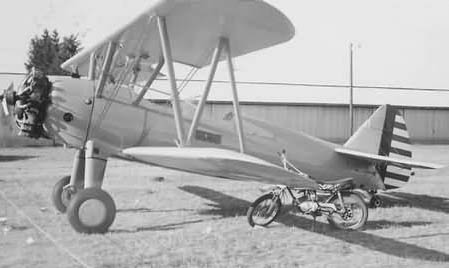

STEARMAN
PT-13 KAYDET
The Stearman (Boeing) Model 75 is a biplane used as a military trainer aircraft, of which at least 8,584 were built in the United States during the 1930s and 1940s. Stearman Aircraft became a subsidiary of Boeing in 1934. Widely known as the Stearman, Boeing Stearman or Kaydet, it served as a primary trainer for the USAAF, the USN (as the NS & N2S), and with the RCAF as the Kaydet throughout World War II. After the conflict was over, thousands of surplus aircraft were sold on the civilian market.

Type:Primary Trainer
Origin: Stearman
Crew: Two
Model: PT-13
First Flight: N/A
Final Delivery: N/A
Contract Price: $11,000
Aircraft Produced: N/A
Powerplants:
   Model: Lycoming R-680
   Type: Radial piston engine
   Number: One       Horsepower: 220 hp
Dimensions:
   Wing span: 32 ft. 2 in.
   Length: 24 ft. 10 in.
   Height: 9 ft. 2 in.
   Wing Surface Area: N/A
   Weights:
   Empty: N/A
   Loaded: 2,717 lb.

Performance:
   Maximum Speed: 125 mph
   Cruising Speed: 104 mph
   Service Ceiling: 14,000 ft.
   Range: 450 miles
Armament: None

Payload: N/A
Avionics: N/A
Sources:
The Complete Encyclodepia of World Aircraft, 1997, Barnes & Nobles Books, ISBN: 0 7607 0592 5
