PC 1600

Over-All Length: 110.8 in.
Body Length: 65.7 in.
Body Diameter: 21.0 in.
Wall Thickness: N/A
Tail Length: N/A
Tail Width: N/A
Total Weight: 1,600 kg

Filling: RDX, Aluminum and Wax
Weight Of Filling: 230 kg.
Charge/Weight Ratio: 14.4%
Fuzing: (49) P16

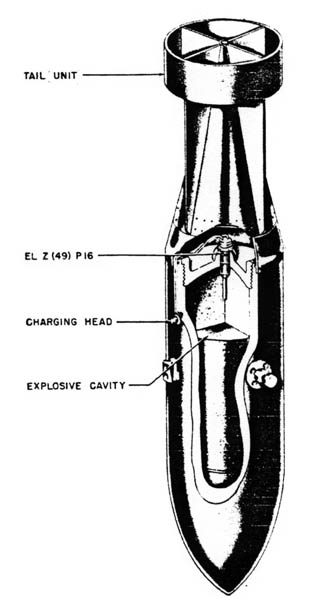

CONSTRUCTION: The body is of two-piece construction with a cylinder type tail. It is designed to penetrate 180mm of Panzer steel or 2.5 meters of reinforced concrete at a striking angle of 60 degrees.
REMARKS: Usually dropped at an altitude of 4,000 to 6,000 meters. The production of this bomb was stopped in October 1942. Bombs then on hand were used and not replaced.
SUSPENSION: Horizontal.
COLOR AND MARKINGS: Blue stripes on tail cone.

All information for this entry were acquired from Army Technical manual TM 9-1985-2/Air Force Technical Order TO 39B-1A-9 GERMAN EXPLOSIVE ORDNANCE (Bombs, Fuzes, Rockets, Land Mines, Grenades & Igniters)
